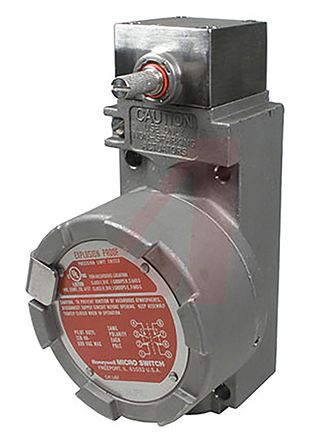

IP67 Snap Action Limit Switch Rotary Lever Stainless Steel, 2NO/2NC, 600V [BX24P4L]; 808-7456
by Honeywell
0₫
Mã kho: 8087456
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Rotary Lever |
| Pole and Throw Configuration | DPDT |
| Normal State Configuration | 2NO/2NC |
| IP Rating | IP67 |
| Maximum Current | 0.416666666666667 |
| Housing Material | Stainless Steel |
| Maximum AC Voltage | 600V |
| Maximum DC Voltage | 250V |
| Connection Type | 20 mm Conduit |
| Contact Type | Snap Action |
| Length | 146.05mm |
| Width | 51.85mm |
| Dimensions | 146.05 x 51.85 x 73.18 mm |
| Hazardous Area Certification | ATEX |
| Maximum Operating Temperature | +70°C |
| Depth | 73.18mm |
| Mounting Orientation | Side |
| Minimum Operating Temperature | -40°C |
