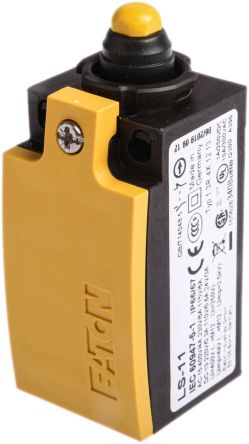

IP66, IP67 Standard Action Limit Switch Plunger Plastic, NO/NC, 415V [LS-11]; 308-266
by Eaton
0₫
Mã kho: 308266
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Plunger |
| Normal State Configuration | NO/NC |
| IP Rating | IP66, IP67 |
| Maximum Current | 0.25 |
| Housing Material | Plastic |
| Maximum AC Voltage | 415V |
| Maximum DC Voltage | 220V |
| Connection Type | Cage Clamp |
| Series | LS-Titan |
| Contact Type | Standard Action |
| Terminal Type | Screw |
| Length | 76mm |
| Width | 33.5mm |
| Minimum Operating Temperature | -25°C |
| Mechanical Life Minimum | 8 x 10⁶ cycles |
| Dimensions | 76 x 33.5 x 31 mm |
| Depth | 31mm |
| Maximum Operating Temperature | +70°C |
