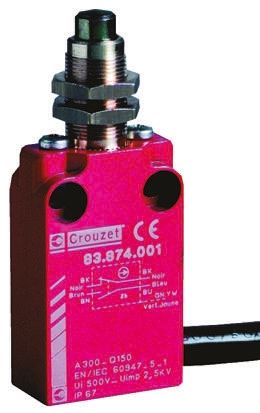

IP66, IP67 Snap Action Limit Switch Plunger Metal, NO/NC, 30V [83874301]; 539-321
by Crouzet
0₫
Mã kho: 539321
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Plunger |
| Normal State Configuration | NO/NC |
| IP Rating | IP66, IP67 |
| Maximum Current | 100 mA |
| Housing Material | Metal |
| Maximum AC Voltage | 30V |
| Maximum DC Voltage | 30V |
| Connection Type | Cable |
| Contact Type | Snap Action |
| Length | 49mm |
| Width | 30mm |
| Maximum Operating Temperature | +70°C |
| Mechanical Life Minimum | 10000000 cycles |
| Minimum Operating Temperature | -25°C |
| Depth | 16mm |
| Dimensions | 49 x 30 x 16 mm |
