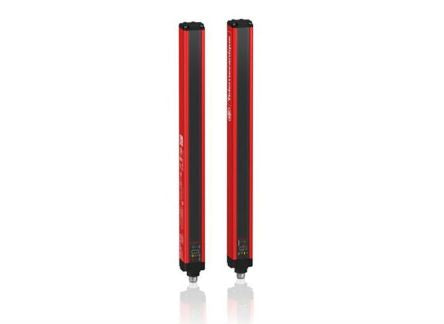

Light Curtain 910MM 30MM RES 46 Beam [XUSL4MB30H091N]; 196-4112
0₫
Mã kho: 1964112
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Range | Preventa Safety Detection |
Series | XUSL4M |
Beam Resolution | 30mm |
Component Type | Receiver, Transmitter |
Safety Type | 4 |
SIL IEC 61508 | 3 |
Number of Beams | 46 |
Protective Height | 910mm |
Minimum Scanning Distance | 0m |
Maximum Scanning Distance | 4 m, 12 m |
Maximum Response Time | 14.5 ms |
Supply Voltage | 24 V dc |
Dimensions | 55 x 50 x 995 mm |
Length | 55mm |
Features | Automatic/Manual Restart, Multi-Colour LEDs, 2 PNP Output |
Terminal Type | 5-Pin M12 Female Connectors (Receiver), 5-Pin M12 Female Connectors (Transmitter), 5-Pin M12 Male Connectors (Transmitter), 12-Pin M12 Male Connectors (Receiver) |
Height | 995mm |
Application | Hand |
Width | 50mm |
