![Telemecanique Sensors XUSL4MB30H046N 1964109](http://nguyenxuong.com/cdn/shop/products/Y1964109-01_444x324.jpg?v=1594374833)

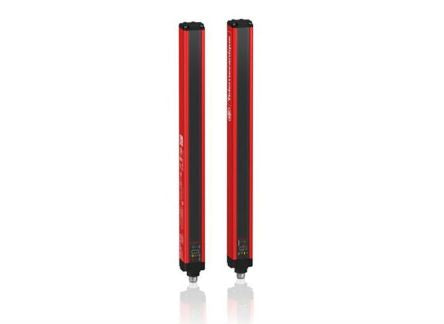

Light Curtain 460MM 30MM RES 23 Beam [XUSL4MB30H046N]; 196-4109
0₫
Mã kho: 1964109
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Range | Preventa Safety Detection |
Series | XUSL4M |
Beam Resolution | 30mm |
Component Type | Receiver, Transmitter |
Safety Type | 4 |
SIL IEC 61508 | 3 |
Number of Beams | 23 |
Protective Height | 460mm |
Minimum Scanning Distance | 0m |
Maximum Scanning Distance | 4 m, 12 m |
Maximum Response Time | 9.5 ms |
Supply Voltage | 24 V dc |
Width | 50mm |
Length | 55mm |
Features | Automatic/Manual Restart, Multi-Colour LEDs, 2 PNP Output |
Terminal Type | 5-Pin M12 Female Connectors (Receiver), 5-Pin M12 Female Connectors (Transmitter), 5-Pin M12 Male Connectors (Transmitter), 12-Pin M12 Male Connectors (Receiver) |
Application | Hand |
Height | 545mm |
Dimensions | 55 x 50 x 545 mm |
