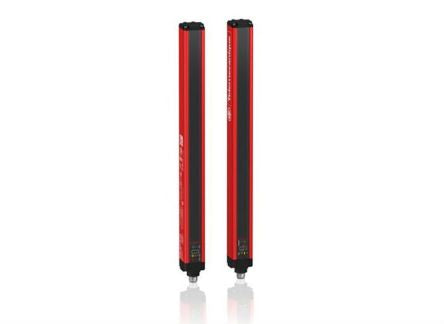

Light Curtain 1360MM 30MM RES 68 Beam [XUSL4MA30H136N]; 196-4093
0₫
Mã kho: 1964093
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Range | Preventa Safety Detection |
| Series | XUSL4M |
| Beam Resolution | 30mm |
| Component Type | Receiver, Transmitter |
| Safety Type | 4 |
| SIL IEC 61508 | 3 |
| Number of Beams | 68 |
| Protective Height | 1360mm |
| Minimum Scanning Distance | 0m |
| Maximum Scanning Distance | 4 m, 12 m |
| Maximum Response Time | 19 ms |
| Supply Voltage | 24 V dc |
| Application | Hand |
| Terminal Type | 5-Pin M12 Female Connectors (Receiver), 5-Pin M12 Female Connectors (Transmitter), 5-Pin M12 Male Connectors (Transmitter), 12-Pin M12 Male Connectors (Receiver) |
| Dimensions | 55 x 50 x 1445 mm |
| Length | 55mm |
| Width | 50mm |
| Features | Automatic/Manual Restart, Multi-Colour LEDs, 2 PNP Output |
