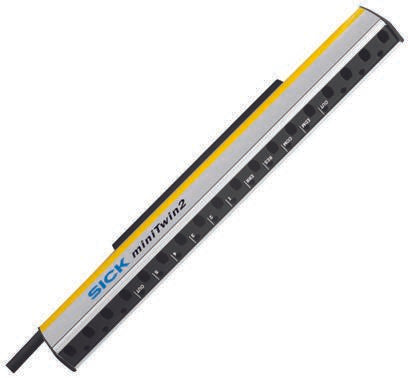

C4MT Light Curtain, Sender & Receiver, 14mm Resolution [C4MT-03014ABB03DE0]; 701-9266
by Sick
0₫
Mã kho: 7019266
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | C4MT |
| Beam Resolution | 14mm |
| Component Type | Receiver, Sender |
| Safety Type | 4 |
| SIL IEC 61508 | 3 |
| PL EN ISO 13849-1 | E |
| Protective Height | 300mm |
| Minimum Scanning Distance | 0m |
| Maximum Scanning Distance | 5m |
| Maximum Response Time | 14 ms |
| Supply Voltage | 24 V dc |
| Length | 32mm |
| Dimensions | 15 x 32 x 300 mm |
| Application | Finger, Hand |
| Terminal Type | 5-Pin M12 Connector |
| Features | EDM, RES |
| Height | 300mm |
| Width | 15mm |
