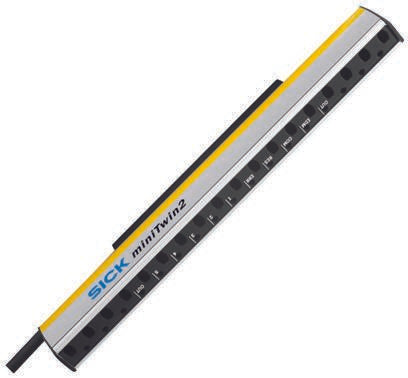

C2MT Light Curtain, Sender & Receiver, 34mm Resolution [C2MT-03034BBC03DE0]; 701-2940
by Sick
0₫
Mã kho: 7012940
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Range | MiniTwin |
Series | C2MT |
Beam Resolution | 34mm |
Component Type | Receiver, Sender |
Safety Type | 2 |
SIL IEC 61508 | 2 |
PL EN ISO 13849-1 | D |
Protective Height | 300mm |
Minimum Scanning Distance | 0m |
Maximum Scanning Distance | 8m |
Maximum Response Time | 13 ms |
Supply Voltage | 24 V dc |
Application | Hand |
Dimensions | 15 x 32 x 300 mm |
Terminal Type | 5-Pin M12 Connector |
Length | 32mm |
Features | EDM, RES |
Width | 15mm |
Height | 300mm |
