![Sick C2C-SA06030A10000 9139267](http://nguyenxuong.com/cdn/shop/products/R9139267-01_112x445.jpg?v=1594057775)

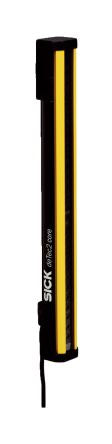

Light Curtain Sender, 30mm Resolution [C2C-SA06030A10000]; 913-9267
by Sick
0₫
Mã kho: 9139267
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Range | DeTec2 Core |
Beam Resolution | 30mm |
Component Type | Sender |
Safety Type | 2 |
SIL IEC 61508 | 1 |
PL EN ISO 13849-1 | C |
Protective Height | 600mm |
Minimum Scanning Distance | 0m |
Maximum Scanning Distance | 10 (Minimum) m, 12 (Typical) m |
Maximum Response Time | 10 ms |
Supply Voltage | 24 V dc |
Application | Body, Hand |
Dimensions | 613 x 34 x 30.7 mm |
Length | 613mm |
Width | 34mm |
Terminal Type | 5-Pin M12 Connector |
Height | 30.7mm |
