Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|

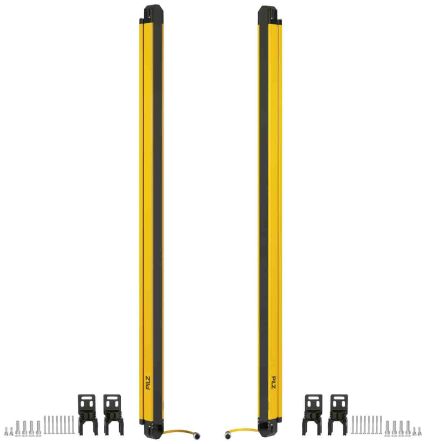

| Series | PSEN opII3H |
| Beam Resolution | 30mm |
| Component Type | Receiver, Transmitter |
| Safety Type | 3 |
| PL EN ISO 13849-1 | D |
| Protective Height | 1050mm |
| Minimum Scanning Distance | 0.2m |
| Maximum Scanning Distance | 18m |
| Maximum Response Time | 22.3 ms |
| Supply Voltage | 24 V dc |
| Width | 40mm |
| Features | Aluminium Alloy Housing, Die-Cast Zinc End Caps, Infrared Protected Field is Generated, Led Indicator for Status Information, Optical Synchronisation of Transmitters and Receivers |
| Terminal Type | 5-Pin M12 Connector |
| Length | 35mm |
| Application | Industrial |
| Dimensions | 35 mm x 40 mm x 1.05 m |
