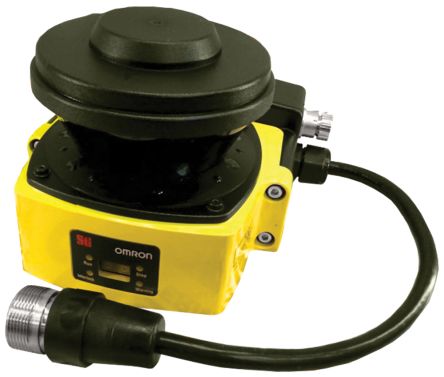

0S32C Laser Scanner, 30 mm, 40 mm, 50 mm, 70 mm Resolution [OS32C-SP1-4M]; 862-5868
by Omron
0₫
Mã kho: 8625868
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Series | 0S32C |
Beam Resolution | 30 mm, 40 mm, 50 mm, 70 mm |
Component Type | Scanner |
Safety Type | 3 |
SIL IEC 61508 | 2 |
PL EN ISO 13849-1 | D |
Maximum Scanning Distance | 4m |
Maximum Response Time | 680 (On to Off) ms, 780 (Off to On) ms |
Supply Voltage | 24 V dc |
Height | 104.5mm |
Terminal Type | M12 Connector |
Width | 133mm |
Length | 159.3mm |
Dimensions | 133 x 142.7 x 104.5 mm |
Features | One Safety Zone, Two Warning Zone, Up to 70 Combinations |
