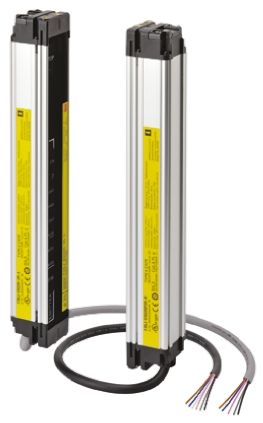

F3SJ Light Curtain, Sender & Receiver, 50 Beams, 20mm Resolution [F3SJ-E1025P25]; 757-7847
by Omron
0₫
Mã kho: 7577847
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | F3SJ |
| Beam Resolution | 20mm |
| Component Type | Receiver, Sender |
| Safety Type | 4 |
| SIL IEC 61508 | 3 |
| PL EN ISO 13849-1 | E |
| Number of Beams | 50 |
| Protective Height | 1025mm |
| Minimum Scanning Distance | 0.2m |
| Maximum Scanning Distance | 7m |
| Maximum Response Time | 15 (On to Off) ms, 70 (Off to On) ms |
| Supply Voltage | 24 V dc |
| Dimensions | 30 x 30 x 1094 mm |
| Features | Muting |
| Application | Hand |
| Height | 1094mm |
| Terminal Type | M12 Connector |
| Width | 30mm |
| Length | 30mm |
