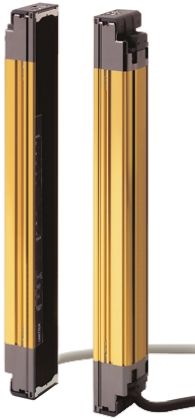

F3SJ Light Curtain, Sender & Receiver, 12 Beams, 25mm Resolution [F3SJ-A0295P30]; 746-7315
by Omron
0₫
Mã kho: 7467315
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Series | F3SJ |
Beam Resolution | 25mm |
Component Type | Receiver, Sender |
Safety Type | 4 |
SIL IEC 61508 | 3 |
PL EN ISO 13849-1 | E |
Number of Beams | 12 |
Protective Height | 295mm |
Minimum Scanning Distance | 0.2m |
Maximum Scanning Distance | 9m |
Maximum Response Time | 17.5 (On to Off) ms, 70 (Off to On) ms |
Supply Voltage | 24 V dc |
Application | Body, Hand |
Height | 404mm |
Terminal Type | 8-Pin M12 Connector |
Length | 30mm |
Width | 26mm |
Dimensions | 26 x 30 x 404 mm |
Features | Blanking, Partial Muting |
