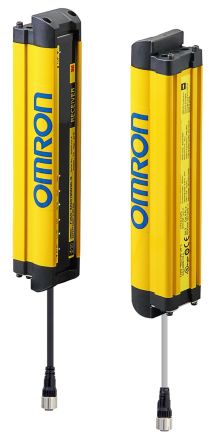

F3SG-RE Light Curtain, Sender & Receiver, 28 Beams, 30mm Resolution [F3SG-2RE0590P30]; 125-0685
by Omron
0₫
Mã kho: 1250685
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | F3SG-RE |
| Beam Resolution | 30mm |
| Component Type | Receiver, Sender |
| Safety Type | 2 |
| PL EN ISO 13849-1 | C |
| Number of Beams | 28 |
| Protective Height | 590mm |
| Minimum Scanning Distance | 0.3 (Long) m, 0.3 (Short) m |
| Maximum Scanning Distance | 7 (Short) m, 20 (Long) m |
| Maximum Response Time | 7 (ON to OFF) ms, 35 (OFF to ON Synchronized) ms, 135 (OFF to ON Not Synchronized) ms |
| Supply Voltage | 24 V dc |
| Application | Arm, Finger, Hand |
| Features | Downsized, Easy Adjustment after Mounting, Ensuring Safe Restart, No Torque Control Required, Protected with Protection Cover, Quick Troubleshooting, Reducing Stops Due to Mutual Interference, Reliable Even in Harsh Environment, Robust & Compact Design, Slim Housing, Smart Muting Actuator, Used in Global & Harsh Environment |
| Width | 35mm |
| Terminal Type | Cable, 5-Pin M12 Connector (Emiiter), 8-Pin M12 Connector (Receiver) |
| Length | 35mm |
| Dimensions | 35 x 35 x 590 mm |
| Height | 590mm |
