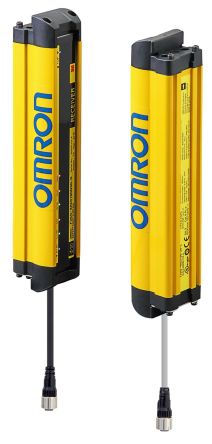

F3SG-RE Light Curtain, Sender & Receiver, 23 Beams, 14mm Resolution [F3SG-2RE0240P14]; 125-0674
by Omron
0₫
Mã kho: 1250674
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Series | F3SG-RE |
Beam Resolution | 14mm |
Component Type | Receiver, Sender |
Safety Type | 2 |
PL EN ISO 13849-1 | C |
Number of Beams | 23 |
Protective Height | 240mm |
Minimum Scanning Distance | 0.3 (Long) m, 0.3 (Short) m |
Maximum Scanning Distance | 3 (Short) m, 10 (Long) m |
Maximum Response Time | 5 (ON to OFF) ms, 25 (OFF to ON Synchronized) ms, 125 (OFF to ON Not Synchronized) ms |
Supply Voltage | 24 V dc |
Application | Arm, Finger, Hand |
Height | 240mm |
Terminal Type | Cable, 5-Pin M12 Connector (Emiiter), 8-Pin M12 Connector (Receiver) |
Width | 35mm |
Length | 35mm |
Dimensions | 35 x 35 x 240 mm |
Features | Downsized, Easy Adjustment after Mounting, Ensuring Safe Restart, No Torque Control Required, Protected with Protection Cover, Quick Troubleshooting, Reducing Stops Due to Mutual Interference, Reliable Even in Harsh Environment, Robust & Compact Design, Slim Housing, Smart Muting Actuator, Used in Global & Harsh Environment |
