Light Curtains > Light Curtains

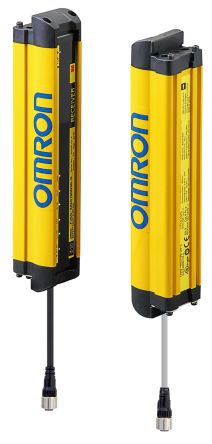

F3SG-RE Light Curtain, Sender & Receiver, 15 Beams, 14mm Resolution [F3SG-2RE0160P14]; 125-0673

by Omron
0₫
(Giá chưa VAT).
Mã kho: 1250673

Mã nhà sản xuất: F3SG-2RE0160P14

Đơn vị tính: 1 Pair

Liên hệ để có giá tốt (Vietnam: 0898.332.898,  E-mail: SKF@nguyenxuong.com)

THÔNG SỐ KỸ THUẬT
Series F3SG-RE
Beam Resolution 14mm
Component Type Receiver, Sender
Safety Type 2
PL EN ISO 13849-1 C
Number of Beams 15
Protective Height 160mm
Minimum Scanning Distance 0.3 (Long) m, 0.3 (Short) m
Maximum Scanning Distance 3 (Short) m, 10 (Long) m
Maximum Response Time 5 (ON to OFF) ms, 25 (OFF to ON Synchronized) ms, 125 (OFF to ON Not Synchronized) ms
Supply Voltage 24 V dc
Application Arm, Finger, Hand
Height 160mm
Terminal Type Cable, 5-Pin M12 Connector (Emiiter), 8-Pin M12 Connector (Receiver)
Dimensions 35 x 35 x 160 mm
Width 35mm
Features Downsized, Easy Adjustment after Mounting, Ensuring Safe Restart, No Torque Control Required, Protected with Protection Cover, Quick Troubleshooting, Reducing Stops Due to Mutual Interference, Reliable Even in Harsh Environment, Robust & Compact Design, Slim Housing, Smart Muting Actuator, Used in Global & Harsh Environment
Length 35mm
