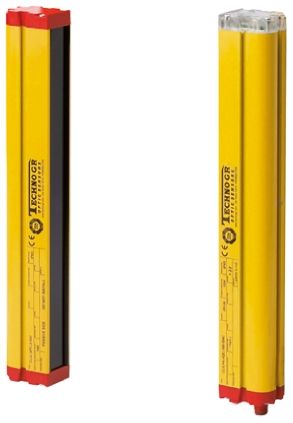

F3S-TGR-CL Light Curtain, Sender & Receiver, 2 Beams, 35mm Resolution [F3S-TGR-CL2A-035-1200]; 757-7721
by Omron
0₫
Mã kho: 7577721
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | F3S-TGR-CL |
| Beam Resolution | 35mm |
| Component Type | Receiver, Sender |
| Safety Type | 2 |
| PL EN ISO 13849-1 | C |
| Number of Beams | 2 |
| Protective Height | 1200mm |
| Minimum Scanning Distance | 0.2m |
| Maximum Scanning Distance | 14m |
| Maximum Response Time | 103 ms |
| Supply Voltage | 24 V dc |
| Dimensions | 1246 x 37 x 48 mm |
| Terminal Type | M12 Connector |
| Height | 48mm |
| Length | 1.246m |
| Width | 37mm |
| Application | Finger, Hand |
| Features | Auto Reset, Blanking, Interlock With Manual Reset, Muting, Preset Function |
