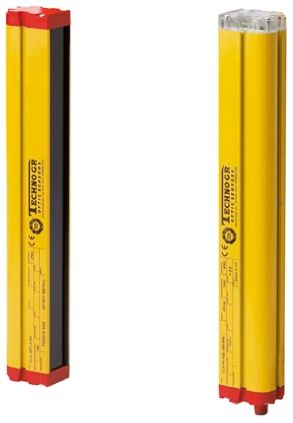

F3S-TGR-CL Light Curtain, Sender & Receiver, 2 Beams, 14mm Resolution [F3S-TGR-CL2A-014-900]; 757-7670
by Omron
0₫
Mã kho: 7577670
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | F3S-TGR-CL |
| Beam Resolution | 14mm |
| Component Type | Receiver, Sender |
| Safety Type | 2 |
| PL EN ISO 13849-1 | C |
| Number of Beams | 2 |
| Protective Height | 900mm |
| Minimum Scanning Distance | 0.2m |
| Maximum Scanning Distance | 6m |
| Maximum Response Time | 103 ms |
| Supply Voltage | 24 V dc |
| Height | 48mm |
| Dimensions | 952 x 37 x 48 mm |
| Terminal Type | M12 Connector |
| Width | 37mm |
| Application | Finger, Hand |
| Length | 952mm |
| Features | Auto Reset, Blanking, Interlock With Manual Reset, Muting, Preset Function |
