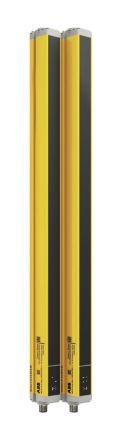

Light Curtain, Sender & Receiver, 16 Beams, 30mm Resolution [2TLA022302R0100]; 920-9694
by ABB
0₫
Mã kho: 9209694
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Range | Orion1 |
| Beam Resolution | 30mm |
| Component Type | Receiver, Sender |
| Safety Type | 4 |
| PL EN ISO 13849-1 | E |
| Number of Beams | 16 |
| Protective Height | 300mm |
| Minimum Scanning Distance | 0.2m |
| Maximum Scanning Distance | 19m |
| Maximum Response Time | 11 ms |
| Supply Voltage | 24 V dc |
| Length | 383.2mm |
| Width | 32.3mm |
| Dimensions | 383.2 x 32.3 x 36.9 mm |
| Application | Hand |
| Height | 36.9mm |
| Terminal Type | M12 Male Connector |
| Features | Hand Protection, Type 4 Safety Category, 16 Beams |
