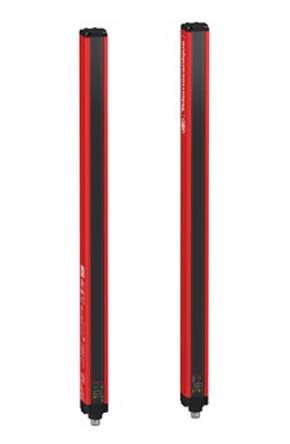

Preventa XUSL2E Light Beam Receiver, Transmitter, 7 Beam, 4 m, 12 m Max Range [XUSL2E4BB091N]; 127-8302
0₫
Mã kho: 1278302
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Range | Preventa |
Series | XUSL2E |
Component Type | Receiver, Transmitter |
Minimum Scanning Distance | 0m |
Maximum Scanning Distance | 4 m, 12 m |
Safety Type | 2 |
SIL IEC 61508 | 1 |
PL EN ISO 13849-1 | C |
Number of Beams | 7 |
Peak Wavelength | 950nm |
Maximum Response Time | 3.5 ms |
Terminal Type | 5-Pin M12 Male Connector (Transmitter), 8-Pin M12 Male Connector (Receiver) |
Dimensions | 31 x 29.4 x 1053 mm |
Protective Height | 910mm |
Application | Body |
Height | 1053mm |
Width | 29.4mm |
Length | 31mm |
Features | Automatic/Manual Restart, Multi-Colour LEDs, 2 PNP Output |
