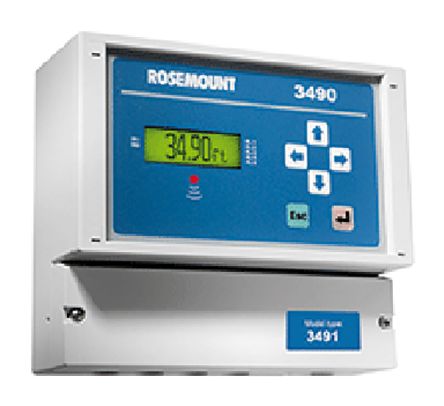

Rosemount 3490 Series Level Controller - Panel Mount 115 → 230 V ac 1 Current, Voltage Input [3493L1P7I1]; 892-9340
by Rosemount
0₫
Mã kho: 8929340
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Inputs | 1 |
| Mounting Style | Panel Mount |
| Probe Voltage | 230/115Vac selectable |
| Supply Voltage | 115 V ac, 230 V ac |
| Overall Length | 144.8mm |
| Overall Width | 74.7mm |
| Overall Depth | 173mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +55°C |
| Current Rating | 4 → 20 mA, 200 (Fuse) mA |
| Series | 3490 |
| Output Type | 1 x 4 - 20mA + 5 x Relay Outputs |
| IP Rating | IP40 |
| Isolation Voltage | 500V dc |
| Input Type | Current, Voltage |
| Number of Outputs | 1 |
