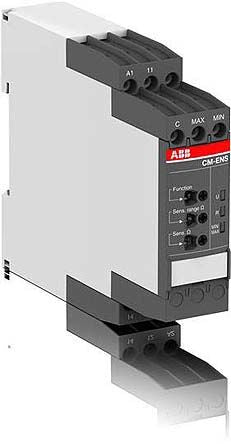

ABB CM-ENS Series Liquid Level Relay - DIN Rail Mount, 24 → 240 V ac/dc 1 Voltage Input SPDT Relay [1SVR740850R0200]; 135-6333
by ABB
0₫
Mã kho: 1356333
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Inputs | 1 |
| Mounting Style | DIN Rail Mount |
| Supply Voltage | 24 → 240 V ac/dc |
| Overall Length | 113.4mm |
| Overall Width | 22.5mm |
| Overall Depth | 113.4mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +60°C |
| Series | CM-ENS |
| Input Type | Voltage |
| Sensitivity | 0.1 → 1000 kΩ |
| IP Rating | IP20 (Terminal), IP50 (Housing) |
| Isolation Voltage | 300 (Supply Circuit)V |
| Output Type | SPDT Relay |
| Number of Outputs | 1 |
| Current Rating | 11 mA |
