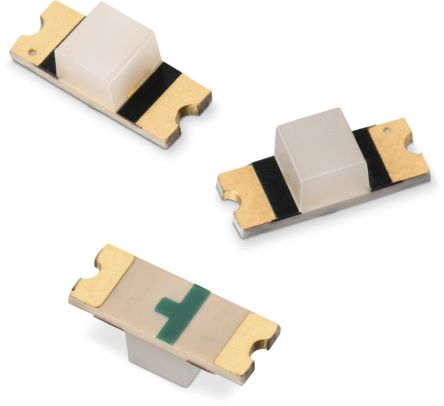

Wurth Elektronik 156125GS57000, WL-SMRD 525 (Typ.) nm Green LED, 1205 Diffused SMD package [156125GS57000]; 176-5034
0₫
Mã kho: 1765034
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| LED Colours | Green |
| Package Type | 1205 |
| Mounting Type | Surface Mount |
| Number of LEDs | 1 |
| Forward Voltage | 3.9 V |
| Luminous Intensity | 200 mcd |
| Number of Pins | 2 |
| Viewing Angle | 160 ° |
| Lens Shape | Rectangle |
| Dominant Wavelength | 525 nm |
| Dimensions | 3.2 x 1.2 x 1.1mm |
| Lens Finish | Diffused |
| Lens Colour | Clear |
| Forward Current | 20mA |
| Series | WL-SMRD |
