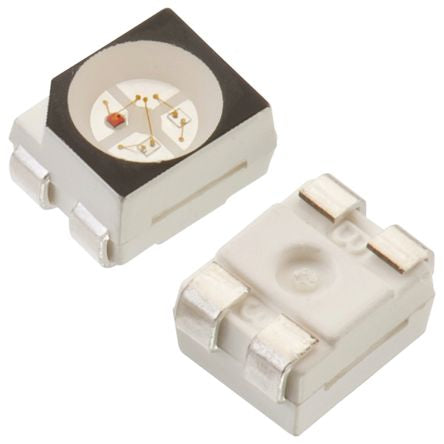

Wurth Elektronik 150141M173100, WL-SFTW 470 / 520 / 625 nm 3 RGB LED, 4-Pin 3528 (1411) Clear SMD package [150141M173100]; 146-0091
0₫
Mã kho: 1460091
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| LED Colours | RGB |
| Package Type | 3528 (1411) |
| Mounting Type | Surface Mount |
| Number of LEDs | 3 |
| Forward Voltage | 2 V, 3.2 V |
| Luminous Intensity | 230 mcd, 270 mcd, 950 mcd |
| Number of Pins | 4 |
| Viewing Angle | 120 ° |
| Lens Shape | Round |
| Dominant Wavelength | 470 / 520 / 625 nm |
| Dimensions | 3.2 x 2.8 x 1.75mm |
| Forward Current | 30mA |
| Series | WL-SFTW |
| Lens Colour | Clear |
| Lens Finish | Clear |
