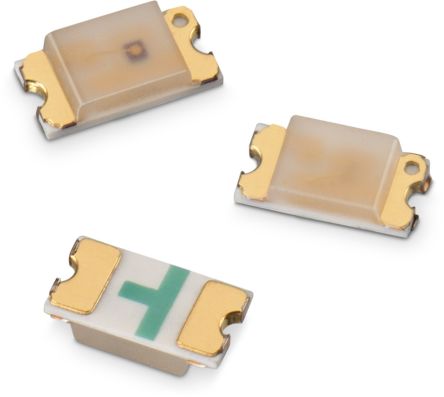

Wurth Elektronik 150060GS55040, WL-SMCD 525 nm Green LED, 0603 Diffused SMD package [150060GS55040]; 176-6068
0₫
Mã kho: 1766068
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| LED Colours | Green |
| Package Type | 1608 (0603) |
| Mounting Type | Surface Mount |
| Number of LEDs | 1 |
| Forward Voltage | 3.9 V |
| Luminous Intensity | 430 mcd |
| Number of Pins | 2 |
| Viewing Angle | 140 ° |
| Lens Shape | Rectangle |
| Dominant Wavelength | 525 nm |
| Dimensions | 1.6 x 0.8 x 0.4mm |
| Forward Current | 20mA |
| Series | WL-SMCD |
| Lens Finish | Diffused |
| Lens Colour | Clear |
