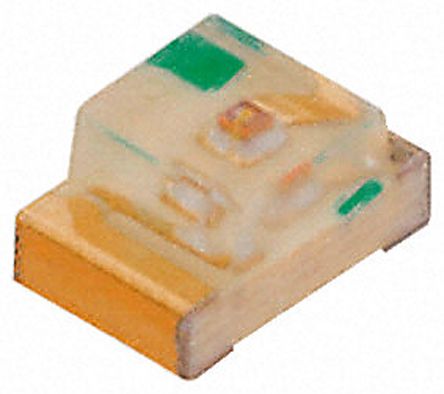

KP-2012SF4C Kingbright, 880Nm IR LED, 2012 (0805) SMD package [KP-2012SF4C]; 871-4678
by Kingbright
0₫
Mã kho: 8714678
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Wavelength | 880nm |
| Package Type | 2012 (0805) |
| Radiant Intensity | 1.5 mW/sr @ 20 mA |
| Mounting Type | Surface Mount |
| Angle of Half Intensity | 120° |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Dimensions | 2 x 1.25 x 1.1mm |
| Lens Shape | Rectangle |
| LED Material | GaAlAs |
| Maximum Supply Voltage | 1.6V |
