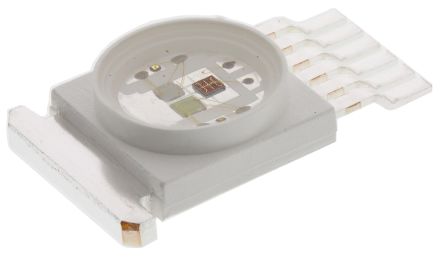

Broadcom ASMT-MT00-00001, Moonstone 460 / 525 / 625 nm 3 RGB LED, 6-Pin SMD package [ASMT-MT00-00001]; 696-1311
by Broadcom
0₫
Mã kho: 6961311
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| LED Colours | RGB |
| Mounting Type | Surface Mount |
| Number of LEDs | 3 |
| Forward Voltage | 2.1 V, 3.2 V |
| Radiant Flux | 3000mW |
| Number of Pins | 6 |
| Viewing Angle | 120 ° |
| Luminous Flux | 13 lm, 40 lm, 85 lm |
| Lens Shape | Round |
| Dominant Wavelength | 460 / 525 / 625 nm |
| Dimensions | 8.5 x 8.5 x 3.3mm |
| Lens Colour | Clear |
| Series | Moonstone |
