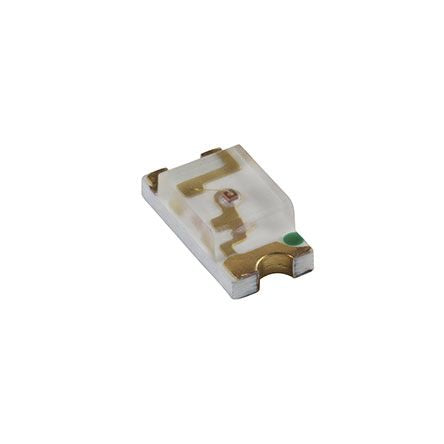

SM1206UV-395-IL Bivar, UV LED, 395 → 400Nm 30 °, 2-Pin Surface Mount package [SM1206UV-395-IL]; 174-9644
by Bivar
0₫
Mã kho: 1749644
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of LEDs | 1 |
| Peak Wavelength | 395 → 400nm |
| Luminous Intensity | 1.2 mW |
| Package Type | 1206 |
| Viewing Angle | 30 ° |
| Lens Shape | Rectangle |
| Number of Pins | 2 |
| LED Material | InGaN, SiC |
| Mounting Type | Surface Mount |
| Height | 1.4mm |
| Length | 3.2mm |
| Width | 1.6mm |
| Dimensions | 3.2 x 1.6 x 1.4mm |
