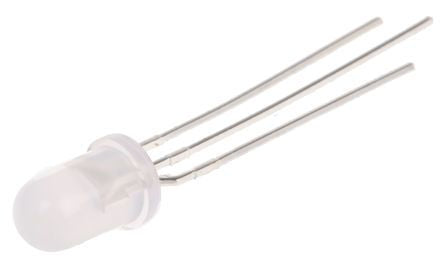

Bivar 5BC-3-CA-F, 568 / 625 nm Green & Red High-Power LED, 3-Pin 5mm (T-1 3/4) Dome Diffused Through Hole package [5BC-3-CA-F]; 906-6188
by Bivar
0₫
Mã kho: 9066188
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| LED Colours | Green, Red |
| Package Type | 5mm (T-1 3/4) |
| Mounting Type | Through Hole |
| Number of LEDs | 1 |
| Forward Voltage | 2 V |
| Luminous Intensity | 4 mcd, 6 mcd |
| Number of Pins | 3 |
| Viewing Angle | 40 ° |
| Lens Shape | Dome |
| Dominant Wavelength | 568 / 625 nm |
| Dimensions | 5.8 x 8.6mm |
| Forward Current | 20mA |
| Lens Finish | Diffused |
