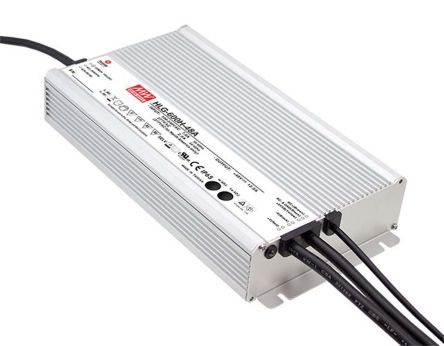

Mean Well HLG-600H-48B, Constant Voltage PWM, Resistance LED Driver 600W 48V 12.5A, HLG-600H Series [HLG-600H-48B]; 876-2624
by Mean Well
0₫
Mã kho: 8762624
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 90 → 305 V ac, 127 → 431 V dc |
| Output Voltage | 48V |
| Operation | Constant Voltage |
| Output Current | 12.5A |
| Maximum Output Power | 600W |
| Dimming Operation | PWM, Resistance |
| AC or DC Input Voltage | Ac, Dc |
| IP Rating | IP67 |
| Configuration | Sealed |
| Current Rating | 7 A @ 115 V ac |
| Number of Outputs | 1 |
| Output | 48 V @ 12.5 A |
| Standards Met | CB, CE, CSA C22.2 No.250.13-12, CULus, EN-62384, EN61347-2-13, ENEC EN61347-1, IP65, IP67, J61347-1, J61347-2-13 Approved, PFC, UL60950-1, UL8750 |
| Primary Type | AC-DC, DC-DC |
| Series | HLG-600H |
| Voltage Rating | 90 → 305 V ac, 127 → 431 V dc |
