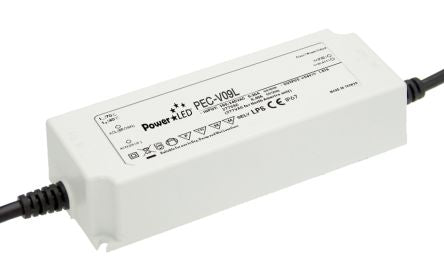

PowerLED PEC-V09L, Constant Current PFC, PWM LED Driver Module 90.3W 42V 2.15A [PEC-V09L]; 903-3664
by PowerLED
0₫
Mã kho: 9033664
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Input Voltage | 90 → 305 V ac, 127 → 431 V dc |
Output Voltage | 42V |
Operation | Constant Current |
Output Current | 2.15A |
Maximum Output Power | 90.3W |
Dimming Operation | PFC, PWM |
AC or DC Input Voltage | Ac, Dc |
IP Rating | IP67 |
Configuration | Sealed |
Current Rating | 400 mA @ 277 V ac, 500 mA @ 230 V ac, 950 mA @ 115 V ac |
Number of Outputs | 1 |
Output | 42 V @ 2.15 A |
Standards Met | CE, EN61347-2-13 Independent, EN63284, ENEC EN61347-1, IP67, J61347-1, J61347-2-13, PFC, SELV, TUV EN60950-1, UL60950-1, UL8750 |
Primary Type | AC, DC-DC |
Voltage Rating | 90 → 305 V ac, 127 → 431 V dc |
