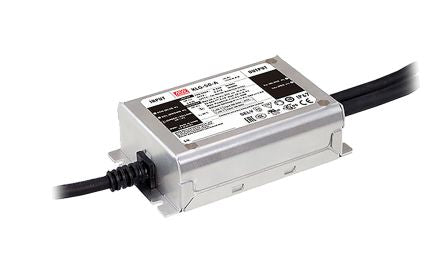

Mean Well XLG-50-A, Constant Current 1-10 V LED Driver 50W 22 → 54V 1A, XLG-50 Series [XLG-50-A]; 183-5732
by Mean Well
0₫
Mã kho: 1835732
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 90 → 305 V ac, 142 → 431 V dc |
| Output Voltage | 22 → 54V |
| Operation | Constant Current |
| Output Current | 1A |
| Maximum Output Power | 50W |
| Dimming Operation | 1-10 V |
| AC or DC Input Voltage | Ac, Dc |
| IP Rating | IP67 |
| Current Rating | 570mA |
| Number of Outputs | 1 |
| Output | 22 → 54 V dc @ 1 A |
| Primary Type | AC/DC-DC |
| Standards Met | AS/NZS EN 61347-2-13, CSA C22.2 No.250.13-12, EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2,3,4,5,6,8,11, EN 61547, EN 62384, ENEC AS/NZS IEC EN 61347-1, GB17625.1, GB17743, GB19510.1, GB19510.14, UL 8750 |
| Voltage Rating | 90 → 305 V ac, 142 → 431 V dc |
| Series | XLG-50 |
