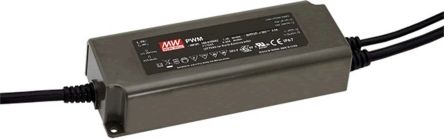

Mean Well PWM-60-12, Constant Voltage PWM, Resistance LED Driver 60W 12V 5A, PWM-60 Series [PWM-60-12]; 876-2573
by Mean Well
0₫
Mã kho: 8762573
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 90 → 305 V ac, 127 → 431 V dc |
| Output Voltage | 12V |
| Operation | Constant Voltage |
| Output Current | 5A |
| Maximum Output Power | 60W |
| Dimming Operation | PWM, Resistance |
| AC or DC Input Voltage | Ac, Dc |
| IP Rating | IP67 |
| Configuration | Sealed |
| Current Rating | 800 mA @ 115 Vc |
| Number of Outputs | 1 |
| Output | 12 V @ 5 A |
| Primary Type | AC-DC, DC-DC |
| Voltage Rating | 90 → 305 V ac, 127 → 431 V dc |
| Standards Met | CB, CE, CSA C22.2 No.250.13-12, CULus, EN-62384, EN61347-2-13, ENEC EN61347-1, IP67, PFC, UL8750 |
| Series | PWM-60 |
