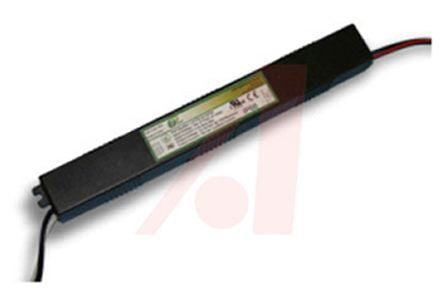

EPtronics INC. LD17W-24-C0700, Constant Current LED Driver 17W 24V 700mA, LD17W Series [LD17W-24-C0700]; 909-1042
0₫
Mã kho: 9091042
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 100 → 277 V ac |
| Output Voltage | 24V |
| Operation | Constant Current |
| Output Current | 700mA |
| Maximum Output Power | 17W |
| AC or DC Input Voltage | Ac |
| IP Rating | IP66 |
| Configuration | Encapsulated |
| Current Rating | 200mA |
| Number of Outputs | 1 |
| Output | 24 V dc @ 700 mA |
| Primary Type | AC-DC |
| Standards Met | CE, CSA 22.2, CULus, EN61000-3-2, EN610000-3-3, EN61347, FCC, UL8750 |
| Voltage Rating | 100 → 277V ac |
| Series | LD17W |
