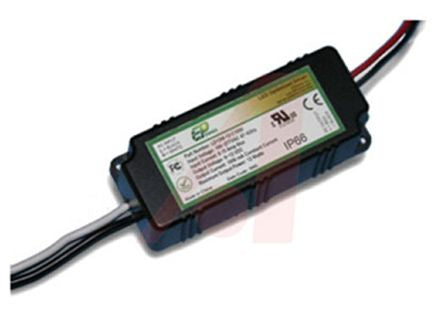

EPtronics INC. LD12W-48-C0250, Constant Current LED Driver 12W 48V 250mA, LD12W Series [LD12W-48-C0250]; 909-1014
0₫
Mã kho: 9091014
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 100 → 277 V ac |
| Output Voltage | 48V |
| Operation | Constant Current |
| Output Current | 250mA |
| Maximum Output Power | 12W |
| AC or DC Input Voltage | Ac |
| IP Rating | IP66 |
| Configuration | Encapsulated |
| Current Rating | 150mA |
| Number of Outputs | 1 |
| Output | 48 V dc @ 250 mA |
| Standards Met | CE, CSA 22.2, CULus, E325626, EN61000-3-2, EN61000-3-3, EN61347, FCC, UL8750 |
| Primary Type | AC-DC |
| Series | LD12W |
| Voltage Rating | 100 → 277V ac |
