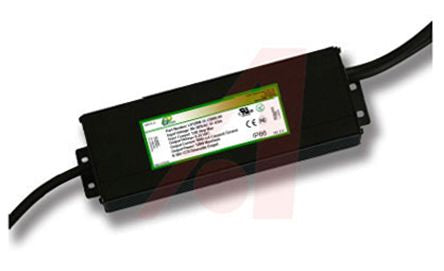

EPtronics INC. LD120W-171-C0700-RD, Constant Current 1-10 V LED Driver 120W 171V 700mA, LD120W Series [LD120W-171-C0700-RD]; 909-0964
0₫
Mã kho: 9090964
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 90 → 305 V ac |
| Output Voltage | 171V |
| Operation | Constant Current |
| Output Current | 700mA |
| Maximum Output Power | 120W |
| Dimming Operation | 1-10 V |
| AC or DC Input Voltage | Ac |
| IP Rating | IP66 |
| Configuration | Encapsulated |
| Current Rating | 1.2A |
| Number of Outputs | 1 |
| Output | 171 V dc @ 700 mA |
| Voltage Rating | 90 → 305V ac |
| Series | LD120W |
| Standards Met | CE, CULus, E325626, EN61000-3-2, EN61000-3-3, EN61347, FCC, UL Type TL & HL, UL8750 |
| Primary Type | AC-DC |
