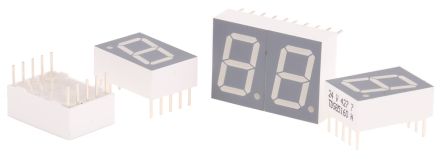

TDSG5160 Vishay 7-Segment LED Display, CC Green 9.5 mcd RH DP 13mm [TDSG5160]; 708-5225
by Vishay
0₫
Mã kho: 7085225
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Green |
| Number of Segments | 7 |
| Dominant Wavelength | 575 nm |
| Character Width | 7.4mm |
| Character Height | 13mm |
| Common Connection | Cathode |
| Mounting Type | Through Hole |
| External Width | 17.5mm |
| External Height | 7mm |
| External Dimensions | 7 x 17.5mm |
| Luminous Intensity | 9.5 mcd |
| Colour of Face | Grey |
| Power Dissipation | 550mW |
| Minimum Operating Temperature | -40°C |
| Decimal Orientation | Right Side |
| Operating Temperature Range | -40 → +85°C |
| Forward Current | 25mA |
| Maximum Operating Temperature | +85°C |
| Forward Voltage | 2 V |
