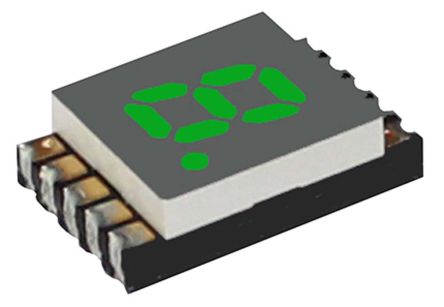

DSM7UA20105 VCC 7-Segment LED Display, CA Green 100 mcd RH DP 5.1mm [DSM7UA20105]; 137-1142
by VCC
0₫
Mã kho: 1371142
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Green |
| Number of Segments | 7 |
| Dominant Wavelength | 530 nm |
| Character Width | 3.2mm |
| Character Height | 5.1mm |
| Common Connection | Anode |
| Mounting Type | Surface Mount |
| External Dimensions | 11 x 7.4 x 3.1mm |
| External Depth | 3.1mm |
| External Height | 11mm |
| External Width | 7.4mm |
| Luminous Intensity | 100 mcd |
| Colour of Face | Grey |
| Power Dissipation | 70mW |
| Series | DSM |
| Forward Voltage | 2.6 V |
| For Use With | DSM Series PCB, DSM Series Socket |
| Operating Temperature Range | -40 → +105°C |
| Decimal Orientation | Right Side |
| Forward Current | 25mA |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
