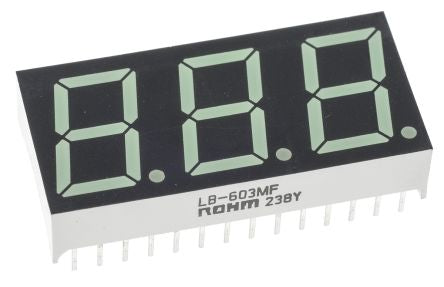

LB-603MF ROHM 3 Digit 7-Segment LED Display, CA Green 25 mcd RH DP 14.2mm [LB-603MF]; 249-7917
by ROHM
0₫
Mã kho: 2497917
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 3 |
| LED Colours | Green |
| Number of Segments | 7 |
| Dominant Wavelength | 563 nm |
| Character Width | 4mm |
| Character Height | 14.2mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Height | 18mm |
| External Depth | 5mm |
| External Width | 37.5mm |
| External Dimensions | 37.5 x 18 x 8mm |
| Luminous Intensity | 25 mcd |
| Colour of Face | Black |
| Power Dissipation | 1440mW |
| Maximum Operating Temperature | +75°C |
| Operating Temperature Range | -25 → +75°C |
| Decimal Orientation | Right Side |
| Minimum Operating Temperature | -25°C |
| Forward Current | 20mA |
| Forward Voltage | 2.1 V |
