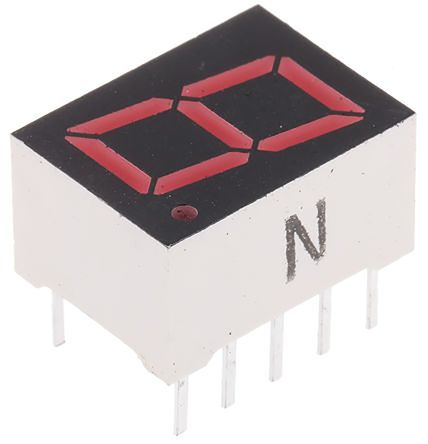

LA-401VN ROHM 7-Segment LED Display, CC Red 16 mcd RH DP 10.2mm [LA-401VN]; 124-6755
by ROHM
0₫
Mã kho: 1246755
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 650 nm |
| Character Width | 5.6mm |
| Character Height | 10.2mm |
| Common Connection | Cathode |
| Mounting Type | Through Hole |
| External Width | 9.6mm |
| External Dimensions | 9.6 x 7 x 13mm |
| External Height | 13mm |
| External Depth | 7mm |
| Luminous Intensity | 16 mcd |
| Colour of Face | Black |
| Power Dissipation | 320mW |
| Operating Temperature Range | -25 → +75°C |
| Minimum Operating Temperature | -25°C |
| Forward Voltage | 2 V |
| Maximum Operating Temperature | +75°C |
| Decimal Orientation | Right Side |
| Series | LA-401 D/N |
| Forward Current | 15mA |
