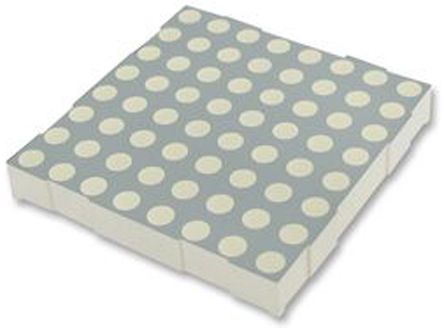

TBA23-12SURKCGKWA Kingbright Dot Matrix LED Display, CA 8 x 8 Dot Matrix Green, Red 51000 ucd, 110000 ucd 58mm [TBA23-12SURKCGKWA]; 165-4373
by Kingbright
0₫
Mã kho: 1654373
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Display Type | Dot Matrix |
LED Colours | Green, Red |
Dominant Wavelength | 570 / 630 nm |
Character Width | 58mm |
Character Height | 58mm |
Common Connection | Anode |
Mounting Type | Through Hole |
External Depth | 9.2mm |
External Height | 60.8mm |
External Dimensions | 60.8 x 60.8 x 9.2mm |
External Width | 60.8mm |
Luminous Intensity | 51000 ucd, 110000 ucd |
Colour of Face | Grey |
Power Dissipation | 75mW |
Minimum Operating Temperature | -40°C |
Forward Voltage | 2.1 V |
Dots High | 8 |
Dot Matrix Dimensions | 8 x 8 |
Maximum Operating Temperature | +85°C |
Operating Temperature Range | -40 → +85°C |
Dot Matrix Format | 8 x 8 |
Forward Current | 30mA |
Series | TBA23 |
Dots Wide | 8 |
