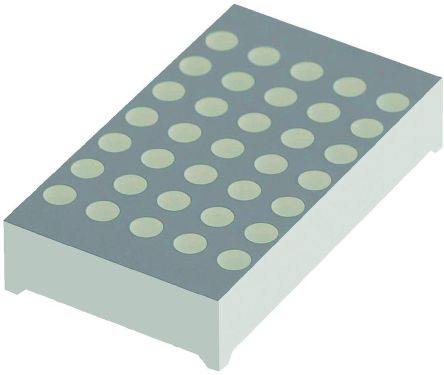

TBA12-11SURKCGKWA Kingbright Dot Matrix LED Display, CA 7 x 5 Dot Matrix Green, Red 73000 ucd, 130000 ucd 30.5mm [TBA12-11SURKCGKWA]; 145-1417
by Kingbright
0₫
Mã kho: 1451417
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | Dot Matrix |
| Number of Characters | 1 |
| LED Colours | Green, Red |
| Character Width | 21mm |
| Character Height | 30.5mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Width | 22.9mm |
| External Height | 8mm |
| External Dimensions | 22.9 x 39 x 8mm |
| External Depth | 39mm |
| Luminous Intensity | 73000 ucd, 130000 ucd |
| Colour of Face | Grey |
| Power Dissipation | 75mW |
| Forward Voltage | 2.5 V |
| Dots High | 7 |
| Dot Matrix Dimensions | 7 x 5 |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Dot Matrix Format | 5 x 7 |
| Forward Current | 30mA |
| Series | TBA12 |
| Minimum Operating Temperature | -40°C |
| Dots Wide | 5 |
