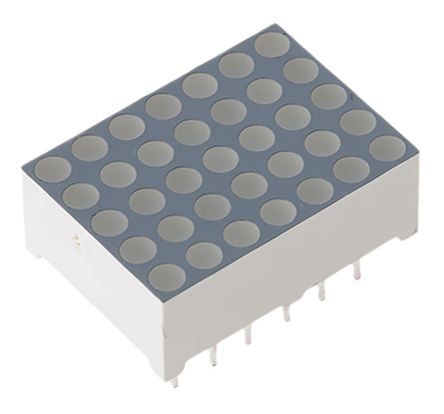

TA07-11GWA Kingbright Dot Matrix LED Display, CA 7 x 5 Dot Matrix Green 12 mcd 17.2mm [TA07-11GWA]; 247-3179
by Kingbright
0₫
Mã kho: 2473179
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | Dot Matrix |
| LED Colours | Green |
| Dominant Wavelength | 568 nm |
| Character Width | 12.5mm |
| Character Height | 17.2mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Width | 12.7mm |
| External Depth | 6.4mm |
| External Height | 17.8mm |
| External Dimensions | 17.8 x 12.7 x 6.4mm |
| Luminous Intensity | 12 mcd |
| Colour of Face | Grey |
| Power Dissipation | 62.5mW |
| Minimum Operating Temperature | -40°C |
| Dot Matrix Format | 5 x 7 |
| Series | TA07 |
| Forward Current | 25mA |
| Forward Voltage | 2.2 V |
| Operating Temperature Range | -40 → +85°C |
| Maximum Operating Temperature | +85°C |
| Dots High | 7 |
| Dots Wide | 5 |
| Dot Matrix Dimensions | 7 x 5 |
