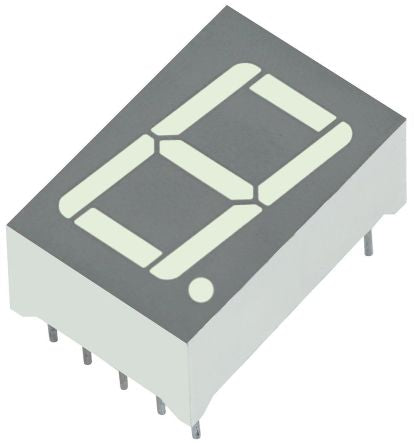

SC56-11SYKWA Kingbright 7-Segment LED Display, CC Yellow 160 mcd RH DP 14.2mm [SC56-11SYKWA]; 165-4383
by Kingbright
0₫
Mã kho: 1654383
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Yellow |
| Number of Segments | 7 |
| Dominant Wavelength | 590 nm |
| Character Width | 8mm |
| Character Height | 14.2mm |
| Common Connection | Cathode |
| Mounting Type | Through Hole |
| External Width | 19.1mm |
| External Depth | 12.7mm |
| External Dimensions | 19.05 x 12.7 x 8mm |
| External Height | 8mm |
| Luminous Intensity | 160 mcd |
| Colour of Face | Grey |
| Power Dissipation | 75mW |
| Decimal Orientation | Right Side |
| Operating Temperature Range | -40 → +85°C |
| Forward Voltage | 2 V |
| Minimum Operating Temperature | -40°C |
| Forward Current | 30mA |
| Maximum Operating Temperature | +85°C |
| Series | SC56 |
