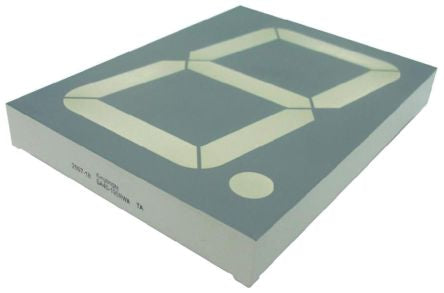

SC40-18SEKWA Kingbright 7-Segment LED Display, CC Orange 500 mcd RH DP 101mm [SC40-18SEKWA]; 165-1520
by Kingbright
0₫
Mã kho: 1651520
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Display Type | 7-Segment |
Number of Characters | 1 |
LED Colours | Orange |
Number of Segments | 7 |
Dominant Wavelength | 601 nm |
Character Width | 59.5mm |
Character Height | 101mm |
Common Connection | Cathode |
Mounting Type | Through Hole |
External Dimensions | 90 x 122 x 15mm |
External Height | 15mm |
External Depth | 122mm |
External Width | 90mm |
Luminous Intensity | 500 mcd |
Colour of Face | Grey |
Power Dissipation | 150 mW, 600 mW |
Forward Voltage | 4.2 V, 8.4 V |
Forward Current | 30 mA, 60 mA |
Maximum Operating Temperature | +85°C |
Operating Temperature Range | -40 → +85°C |
Decimal Orientation | Right Side |
Minimum Operating Temperature | -40°C |
