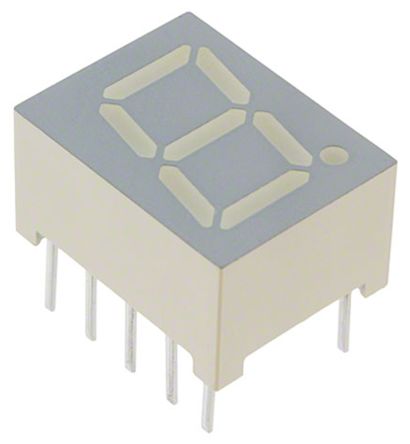

SC39-11SURKWA Kingbright 7-Segment LED Display, CC Red 46 mcd RH DP 10mm [SC39-11SURKWA]; 863-4881
by Kingbright
0₫
Mã kho: 8634881
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Display Type | 7-Segment |
Number of Characters | 1 |
LED Colours | Red |
Number of Segments | 7 |
Dominant Wavelength | 630 nm |
Character Width | 6.2mm |
Character Height | 10mm |
Common Connection | Cathode |
Mounting Type | Through Hole |
External Width | 10mm |
External Dimensions | 10 x 13 x 7mm |
External Height | 13mm |
External Depth | 7mm |
Luminous Intensity | 46 mcd |
Colour of Face | Grey |
Power Dissipation | 75mW |
Decimal Orientation | Right Side |
Minimum Operating Temperature | -40°C |
Operating Temperature Range | -40 → +85°C |
Maximum Operating Temperature | +85°C |
Forward Voltage | 2 V |
Forward Current | 30mA |
