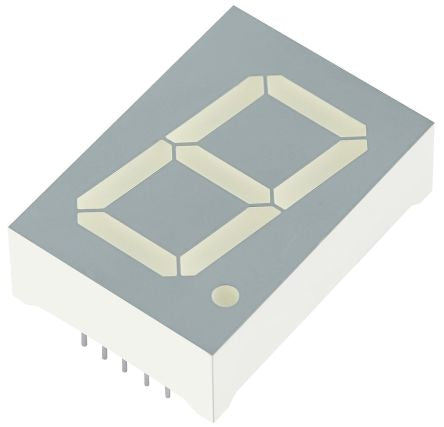

SC10-21CGKWA Kingbright 7-Segment LED Display, CC Green 95 mcd RH DP 25.4mm [SC10-21CGKWA]; 165-4358
by Kingbright
0₫
Mã kho: 1654358
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Green |
| Number of Segments | 7 |
| Dominant Wavelength | 570 nm |
| Character Width | 14mm |
| Character Height | 25.4mm |
| Common Connection | Cathode |
| Mounting Type | Through Hole |
| External Depth | 34mm |
| External Dimensions | 24 x 34 x 10.5mm |
| External Height | 10.5mm |
| External Width | 24mm |
| Luminous Intensity | 95 mcd |
| Colour of Face | Grey |
| Power Dissipation | 75 mW, 150 mW |
| Decimal Orientation | Right Side |
| Series | SC10 |
| Maximum Operating Temperature | +85°C |
| Forward Current | 30mA |
| Forward Voltage | 2.1 V, 4.2 V |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +85°C |
