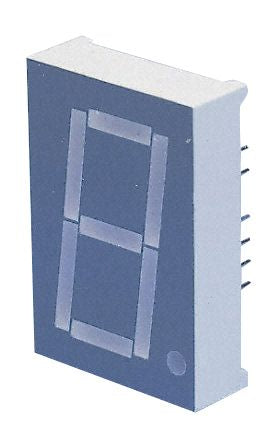

SC10-11SYKWA Kingbright 7-Segment LED Display, CC Yellow 400 mcd RH DP 26mm [SC10-11SYKWA]; 145-1537
by Kingbright
0₫
Mã kho: 1451537
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Yellow |
| Number of Segments | 7 |
| Character Width | 13mm |
| Character Height | 26mm |
| Common Connection | Cathode |
| Mounting Type | Through Hole |
| External Depth | 32.9mm |
| External Dimensions | 22.5 x 32.9 x 8.5mm |
| External Height | 8.5mm |
| External Width | 22.5mm |
| Luminous Intensity | 400 mcd |
| Colour of Face | Grey |
| Power Dissipation | 75 (DP) mW, 150 mW |
| Minimum Operating Temperature | -40°C |
| Forward Voltage | 2.5 (DP) V, 5 V |
| Maximum Operating Temperature | +85°C |
| Decimal Orientation | Right Side |
| Operating Temperature Range | -40 → +85°C |
| Series | SC10 |
| Forward Current | 175mA |
