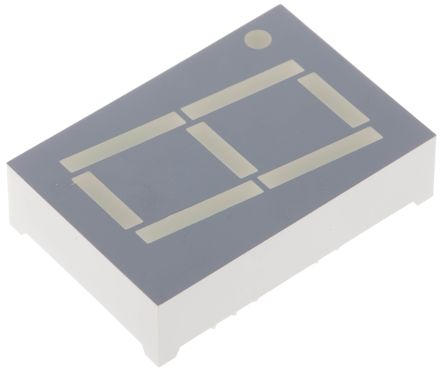

SC10-11EWA Kingbright 7-Segment LED Display, CC Red 23 mcd RH DP 26mm [SC10-11EWA]; 451-6565
by Kingbright
0₫
Mã kho: 4516565
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Display Type | 7-Segment |
Number of Characters | 1 |
LED Colours | Red |
Number of Segments | 7 |
Dominant Wavelength | 625 nm |
Character Width | 13mm |
Character Height | 26mm |
Common Connection | Cathode |
Mounting Type | Through Hole |
External Width | 22.5mm |
External Dimensions | 32.9 x 22.5 x 8.5mm |
External Height | 32.9mm |
External Depth | 8.5mm |
Luminous Intensity | 23 mcd |
Colour of Face | Grey |
Power Dissipation | 75 mW, 150 mW |
Forward Current | 30mA |
Forward Voltage | 2 V, 4 V |
Operating Temperature Range | -40 → +85°C |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
Decimal Orientation | Right Side |
