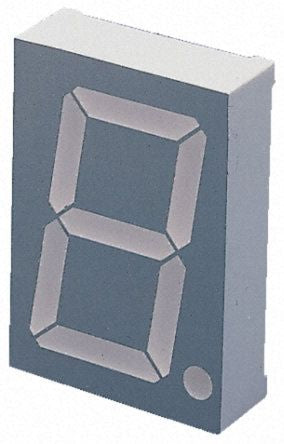

SBC23-11SURKCGKWA Kingbright 7-Segment LED Display, CC Green, Red 200000 μcd, 440000 μcd RH DP 57mm [SBC23-11SURKCGKWA]; 165-4393
by Kingbright
0₫
Mã kho: 1654393
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Display Type | 7-Segment |
Number of Characters | 1 |
LED Colours | Green, Red |
Number of Segments | 7 |
Dominant Wavelength | 570 / 630 nm |
Character Width | 32.2mm |
Character Height | 57mm |
Common Connection | Cathode |
Mounting Type | Through Hole |
External Depth | 70mm |
External Dimensions | 48 x 70 x 12mm |
External Width | 48mm |
External Height | 12mm |
Luminous Intensity | 200000 μcd, 440000 μcd |
Colour of Face | Grey |
Power Dissipation | 150 mW, 300 mW |
Minimum Operating Temperature | -40°C |
Forward Voltage | 3.9 V, 4.2 V |
Maximum Operating Temperature | +85°C |
Operating Temperature Range | -40 → +85°C |
Decimal Orientation | Right Side |
Forward Current | 30mA |
Series | SBC23 |
